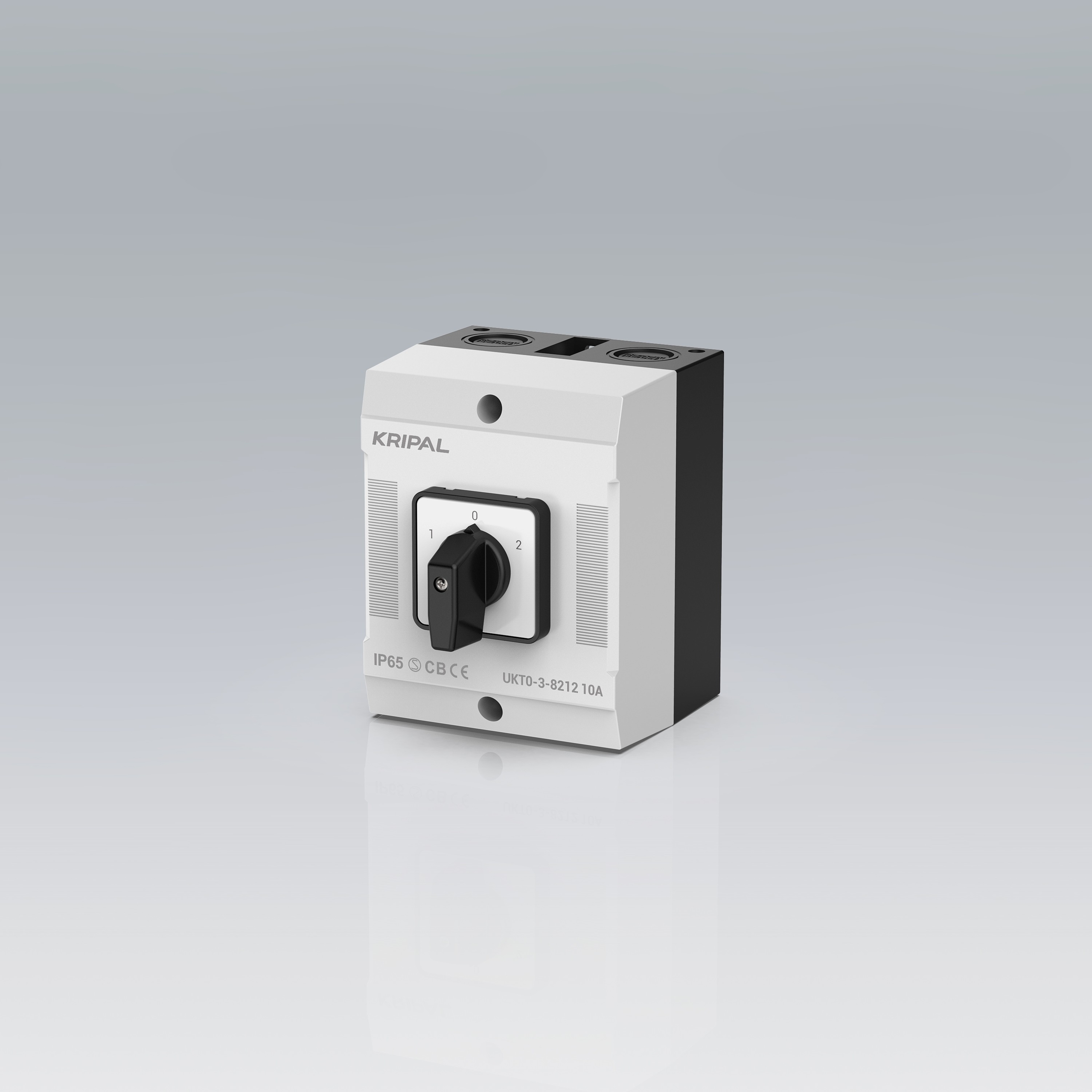

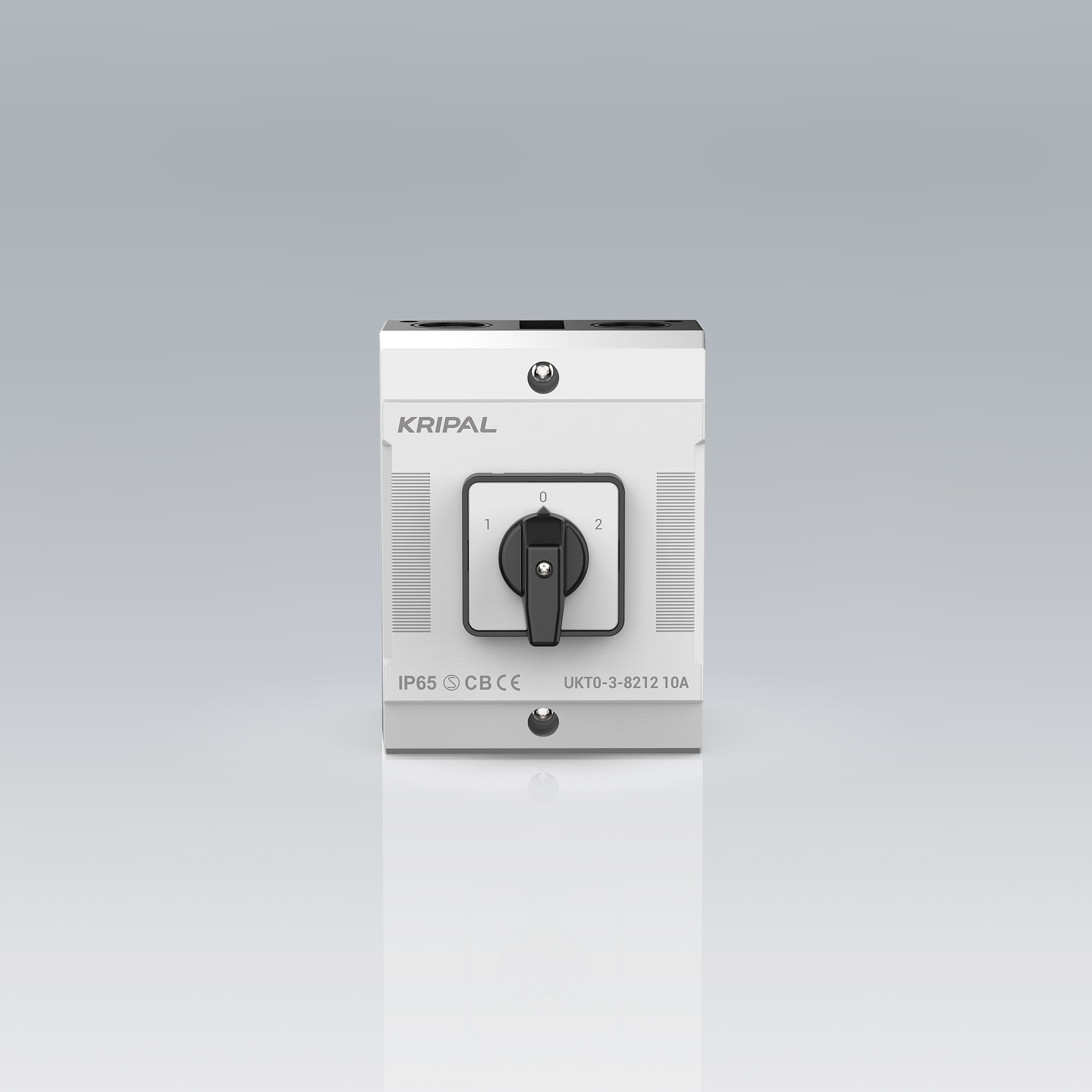

Triple Pole 63A Rotary Cam Selector Switch Waterproof IP65 IEC standard
| Brand Name | KRIPAL |
| Model Number | UKT0/3/5 |
| Type | Cam switch |
| Number of poles | 1P,2P,3P,4P |
| Current | 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A |
| Frequency | 50/60Hz |
| Protection | IP65 |
| Material | PA,PC,Copper |
| Standard | IEC/EN 60947-3 |
| Identification | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Warranty | One and a half years |
| Current(A) | Rated Voltage(V) | Model | |
| 3P | 4P | ||
| 10 | 230-440V | UKT0-310/8212 | UKT0-410/8213 |
| 16 | 230-440V | UKT0-316/8212 | UKT0-416/8213 |
| 20 | 230-440V | UKT0-320/8212 | UKT0-420/8213 |
| 20 | 230-440V | UKT3-320/8212 | UKT3-420/8213 |
| 32 | 230-440V | UKT3-332/8212 | UKT3-432/8213 |
| 40 | 230-440V | UKT3-340/8212 | UKT3-440/8213 |
| 63 | 230-440V | UKT5-363/8212 | UKT5-463/8213 |
| 80 | 230-440V | UKT5-380/8212 | UKT5-480/8213 |
| 100 | 230-440V | UKT5-3100/8212 | UKT5-4100/8213 |
Maintenance switch
Suitable for safe and reliable maintenance switch or connecting various electrical loads and equipped with the shell of the main switch at this time,you can hang a few padlocks in the breaking part,as a measure to ensure personal safety,the breaking part is clearly visible and can not be automatically reset.

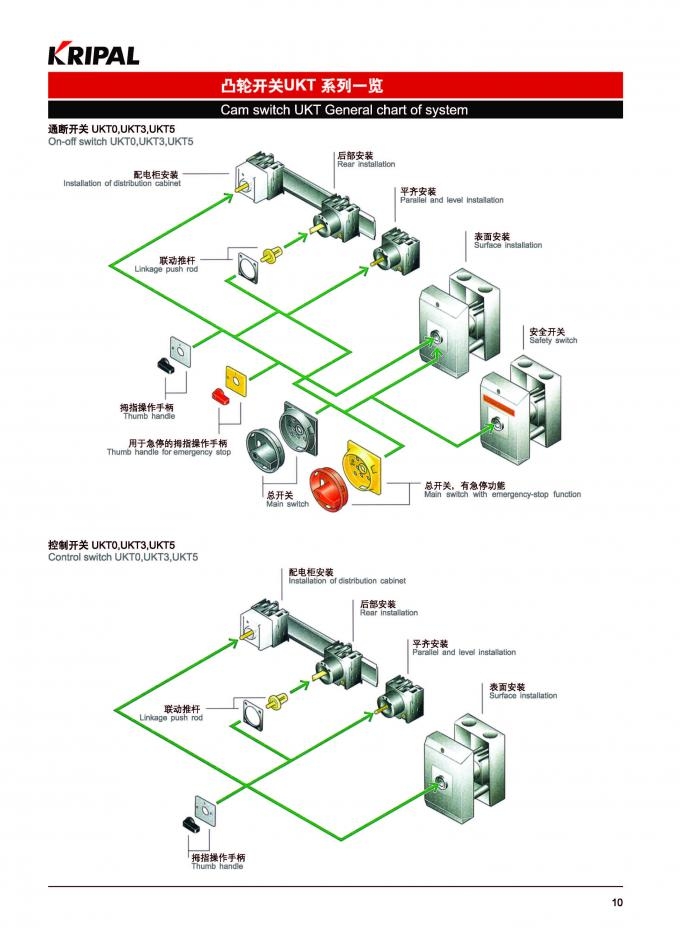

Proper installation ways
①Surface installation(insulation enclosure assembled)
②Parallel and level installation(fix in front of it)
③Rear installation(fix at the back of it,door linkage or cover linkage)
④Parallel and level installation for distribution cabinet(clamping on the guide rail)
Product Feature
1. Safety various combinations of possibilities and touch Cam switch UKT 800 provides standard contact combinations thereof is almost unlimited number of combinations, not only that, during the switch design, safety and reliability in the first place, such as: the terminals in the housing with VDE0106, To ensure the safety of touch.
2.Complete variety:according to the power capacity classification,can provide the most economical solution for different projects;There are a variety of different installation methods of the nameplate,can be flexible to meet the needs of specific applications.
3.Flexible switch functions
On-off switch:It can be used reliably in lighting equipment heating equipment and motor,also can be directly switched motor(AC-3).Their high on-off ability can ensure the work reliability at frequently making and breaking.
Control switch:For controlling the current loop,it simplifies sending instructions from a central control position.For example,starting a specified process from a central control room saves time and makes the production process clear.
The principle applications of Cam Operated Rotary Switches are for making, breaking and isolation of power circuits and switching the circuits. Cam switches are suitable for AC as well as DC application used for virtually all purposes. Such as motor control, panel meter switching, control and distribution panel, etc.
| Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
How to order our product?
1.please tell us the model and quantity and other request you need.
2.We make PI for you.
3.After you confirm the PI,we arrange the order for you after receiving your payment.
4.After the goods finished, we send the goods out to you and tell you the tracking number
5.We will track your goods until you receive the goods.
OEM is available: Material,size,color and other requirements are customized.
High quality after sale service:
1.one and a half years warranty.
2.track the order until you get the goods.
3.Choose the shipping company according to customer’s equirements.
4.We will replace the broken parts with new parts in your next order.
5.Solve the problem with you during using our products.
