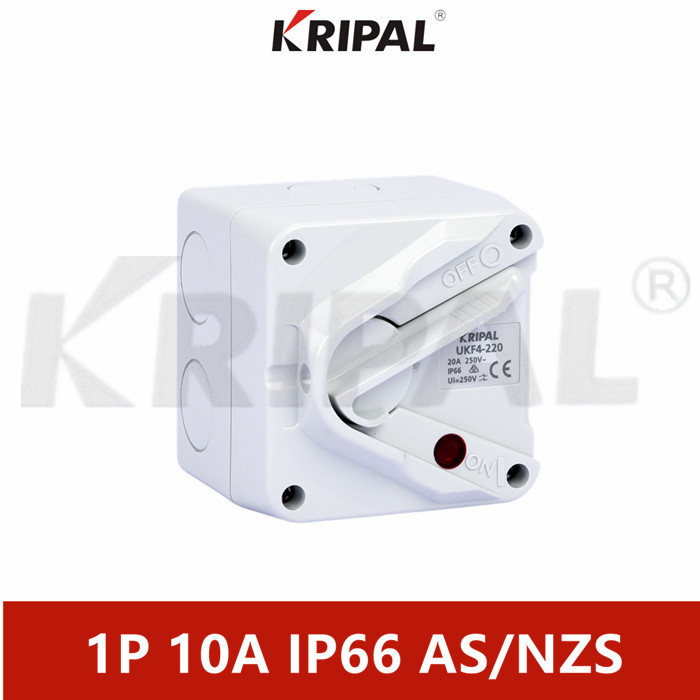

Weatherproof Outdoor Lever Switch Mini Type 10A 1Pole IP66 With SAA
The waterproof isolation switch has super waterproof and dustproof functions, which can effectively prevent the entry of dust and oil, and will not affect the performance of the product in the case of rain or strong water spray; at the same time, it has corrosion resistance, UV resistance, cold resistance, high temperature resistance, Anti-aging and other features can solve your needs for safe electricity use in harsh outdoor environments such as rain, dust, freezing, high temperature, and strong ultraviolet rays. Weather-resistant isolation switches have a wide range of applications and are suitable for any outdoor application conditions.

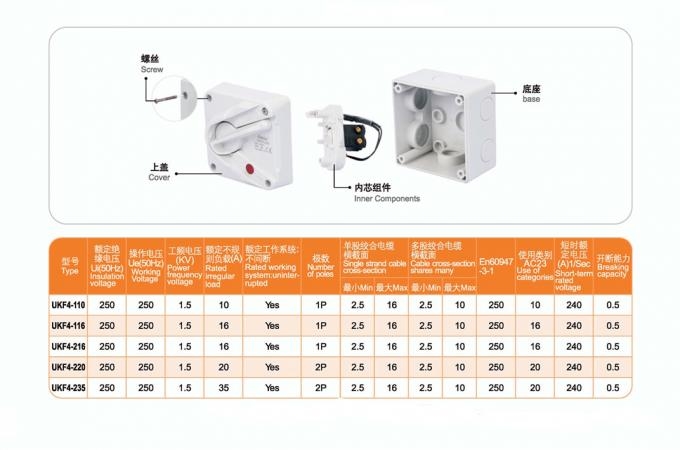

| Brand Name | KRIPAL |
| Model | UKF4 |
| Type | Standard Grounding |
| Number of poles | 1P,2P |
| Current | 10A,16A,20A,35A |
| Frequency | 50/60Hz |
| Rated Voltage | 250V/500V |
| Protection | IP66 |
| Material | PC,Copper |
| Standard | IEC/EN60947,AS/NZS 3123:2005 |
| Identification | SAA,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Color | Gray&White |
| Warranty | One and a half years |
1. The junction box of the switch base installation mechanism provides a larger, more simple connection position.
2. And neutral grounding pole adopts double fastening screw to install, can effectively will all fixed on the junction box, cable and reliable clamping, prevent leakage
3. Higher safety, the switch is installed on the metal structure with an insulation cap, the insulation cap covers the base installation screws, to prevent contact with the live cable insulation cover can be reliably installed on the metal structure switch, WHD panel cover and the base of the combination of two plastic screws, can fully avoid leakage.
4, each device has threaded pipe joint and thread reducer, used to connect to 25 mm or 20 mm catheter and nuts; Nuts must be installed to ensure IP rating.
5. Impact-resistant base and cover plate can withstand severe impact under almost all installation conditions. The base and cover plate are separated by weather-resistant waterproof sealing ring.
6. For safety, heavy machinery cast baffles use 7mm diameter holes in the OFF position to padlock the control rod during maintenance or overhaul. Deep buried baffle is fixed to prevent accidental switch operation of the joystick.
7, all products meet IEC60947-3 standard, in any bad working environment can provide safe and reliable power supply control.
8. Appearance color: the standard color of the switch is off-white.
The products are widely used in smelting, chemical industry, power and electronics, airport, railway, construction site, mine, quarry, water supply and drainage treatment plant, automobile manufacturing, port, wharf, shopping mall, hotel and other places. The 'open' and 'close' positions are clearly marked and padlock holes are provided When used as maintenance switch and safety switch, padlock can be installed on the "closed" part; If you want to lock in the 'open' position, you only need to lock one hole; So as to ensure the safety of users.
Packaging & Delivery
| Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
Q:How many employees do you have?
A:We have more than 500 employees now,with in-house R&D teem.
Q:What is your terms of packing?
A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q:Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A: 1.We keep good quality and competitive price to ensure our customers benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Zhejiang kripal Electric Co., Ltd., established in 1992, is a state-level high-tech enterprise specializing in R & D, production and sales of low-voltage electrical, waterproof electrical and new energy products. It is located in Yueqing, Zhejiang, the famous "electrical capital".
The company has passed ISO 9001:2000 international quality system certification, and its series of products have passed UL, VDE, TUV, Kema, Semko, SAA, CE, CB test report certification, and have passed ROHS international certification. It has cooperated with domestic and foreign scientific research institutions and introduced foreign countries. With advanced manufacturing and testing equipment, more than 100 products with independent intellectual property rights have been developed. A number of products have obtained national invention and utility model patents, and have become provincial technology research and development centers and patent demonstration enterprises in Zhejiang Province.
The company adheres to the enterprise policy of "scientific management, independent innovation, coordination and cooperation, brand first", continuously makes scientific innovation, makes every effort to build "KRIPAL" brand, and strives to provide users with excellent products and quality services, so as to win customer satisfaction.
Hope to cooperate sincerely with friends from all walks of life at home and abroad, common progress, mutual development, and create a win-win future!
